GTK6140 大巴整车外观

GTK6776

车型介绍 Model Introduction
专门为出口旅游观光和城市通勤开发的7m车型,柴油四轮驱动中巴,满足不同的路况;
7m model specially developed for export tourism and urban commuting, diesel four-wheel drive minibus to meet different road conditions.

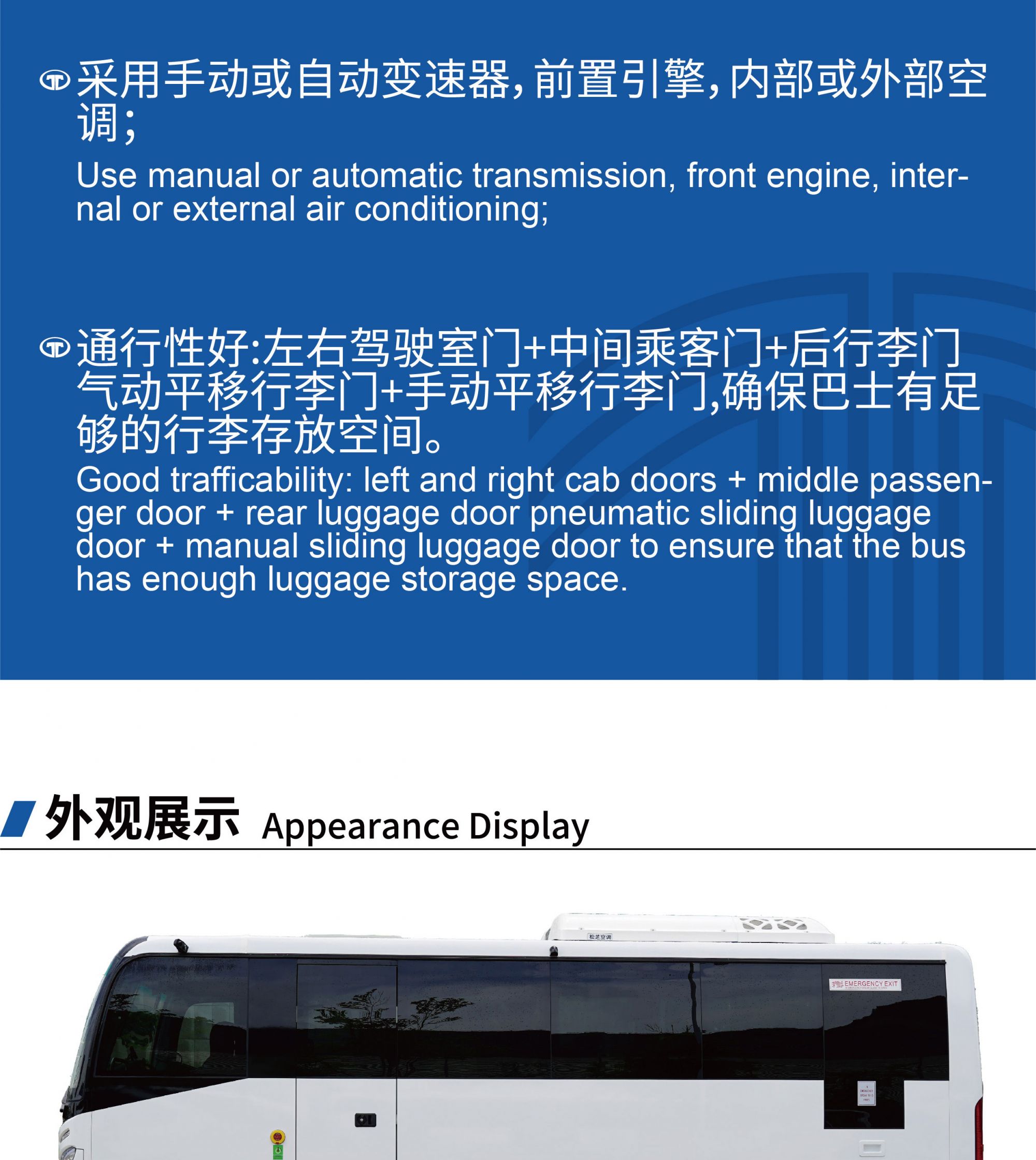

采用手动或自动变速器,前置引擎,内部或外部空调;
Use manual or automatic transmission, front engine, internal or external air conditioning.
通行性好:左右驾驶室门+中间乘客门+后行李门气动平移行李门+手动平移行李门,确保巴士有足够的行李存放空间。
Good trafficability: left and right cab doors + middle passenger door + rear luggage door pneumatic sliding luggage door + manual sliding luggage door to ensure that the bus has enough luggage storage space.
外观展示 Appearance Display
GTK6140 内饰展示
内饰展示 Interior Display
GTK6140 内饰展示
参数配置 Parameter Configuration
整车型号 Vehicle Type GTK6776
总尺寸(L*W*H) Overall Dimensions 7750*2400*3150(mm)
最高车速 Max Speed 100km/h
最大总质量 Max Loading Mass 8500kg
载客量 Seats Capacity 27+1/optional
发动机型号 Engine Type Yuchai/Weichai/Cummins
变速器 Transmission Manual/Automatic
排放标准 Emission Standard Euro Ⅲ/Ⅳ/Ⅴ/Ⅵ
燃料类型 Fuel Type Diesel 柴油
